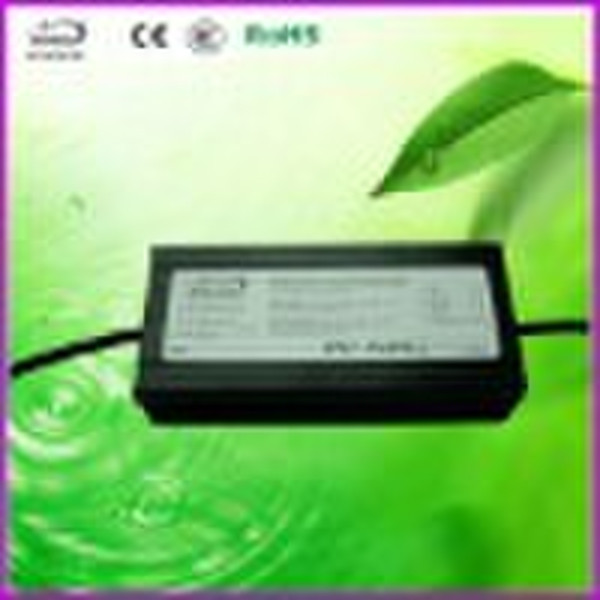

100w dual output power supply

Model: WNP09048LM2 Name: Dual output power supply for led street lighting . Features and advantages : 90Vac-264Vac Universal input voltage single output and constant current Built-in active PFC function ,PF>0.95 Protected functions:short circuit/over voltage/Over temperature Cooling by free air convection Waterproof level : IP67 Warranty : 3 years Application :LED street lamp /led stree light,wall wash lightHigh power supply's Speifications :ModelWNP09048LM2-XXXWNP09048LM3-XXXOutput typeDualTripleTotal output power100W150WSingle Output features0.7A0.2A-0.7A0.2A-0.7AVoltage range36Vdc-200VdcRipple & Noise250mV250mVCurrent Regulation±3%Starting time1000mS/230Vac,3000mS/115VacInputVoltage range90Vac-264VacFrequency range47Hz-63HzPower factorPF>0.95/230Vac,PF>0.98/115VacEfficiency90%/230VacInrush Current20A/115Vac,40A/230VacLeakage Current<1mA/240VacProtectionshort circuitProtection:Output Short Circuit Protection.Protection mode:Single output Protection,Hiccup ,recovery after the fault removed.Over voltageProtection mode:Limit highest voltage, recovery after the fault removed.Over temperatureProtection:105°C±5°C(Internal radiator's temperature)Protection mode:Closed Output voltage,recovery after temperature automatic recovery. OtherEnvironmentWorking temperature&humidity-20 oC-50 oC;20%-90%RH,Without condensation .Storage temperature&humidity-40 oC-85 oC;10%-95%RHVibration Resist10-500Hz,2G ,X,Y,Z axis 60 mintues.Safty&EMCSafetyUL8750,GB4943HI-POTI/P-O/P: 3KVacInsulation resistanceI/P-O/P: 100M Ohms/500VdcEMIEN55015, GB9254 CLASSBHarmonicCurrentIEC1000-3-2,3OthersDimension207*80*40mm(L*W*H)Net weight1KG
